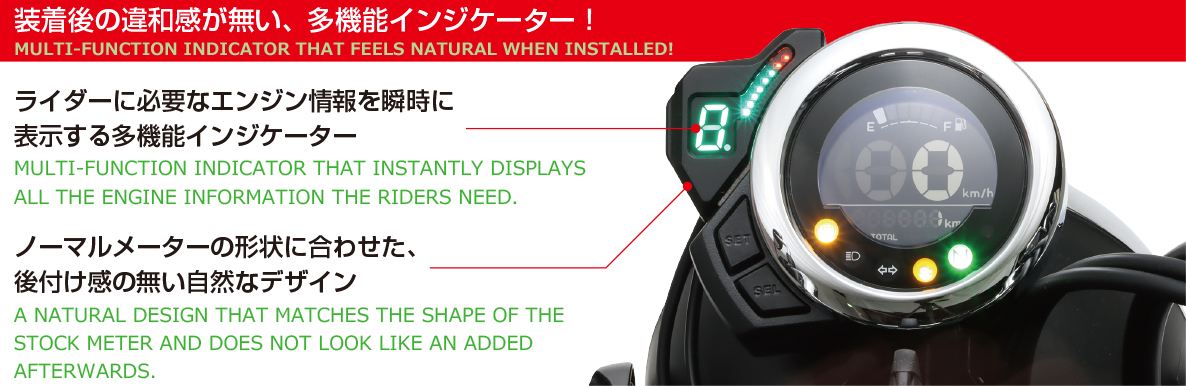

●MAIN FUNCTIONS

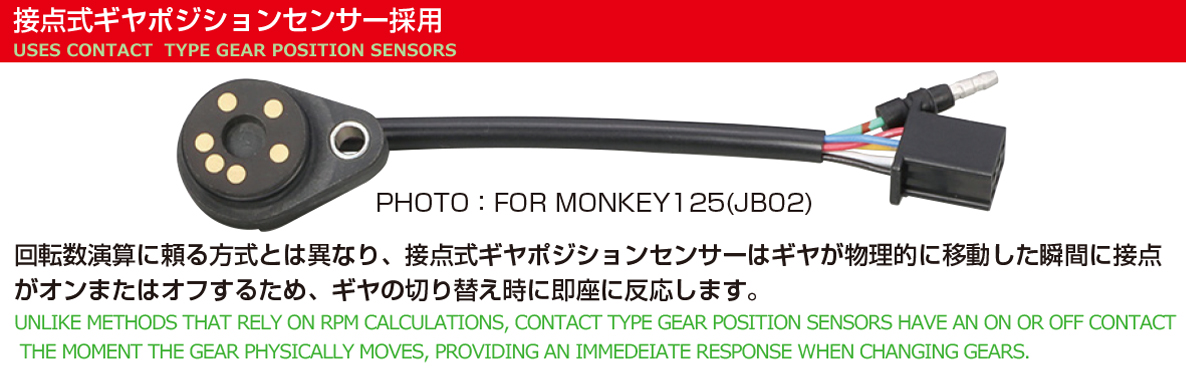

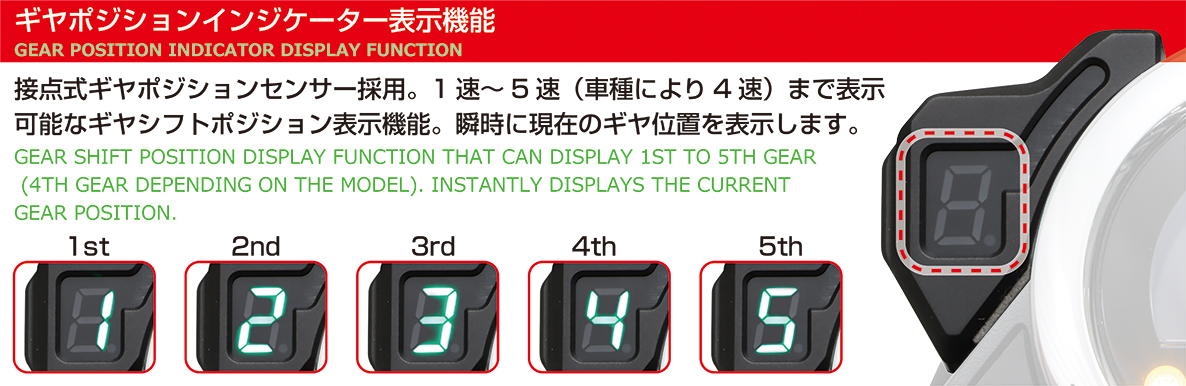

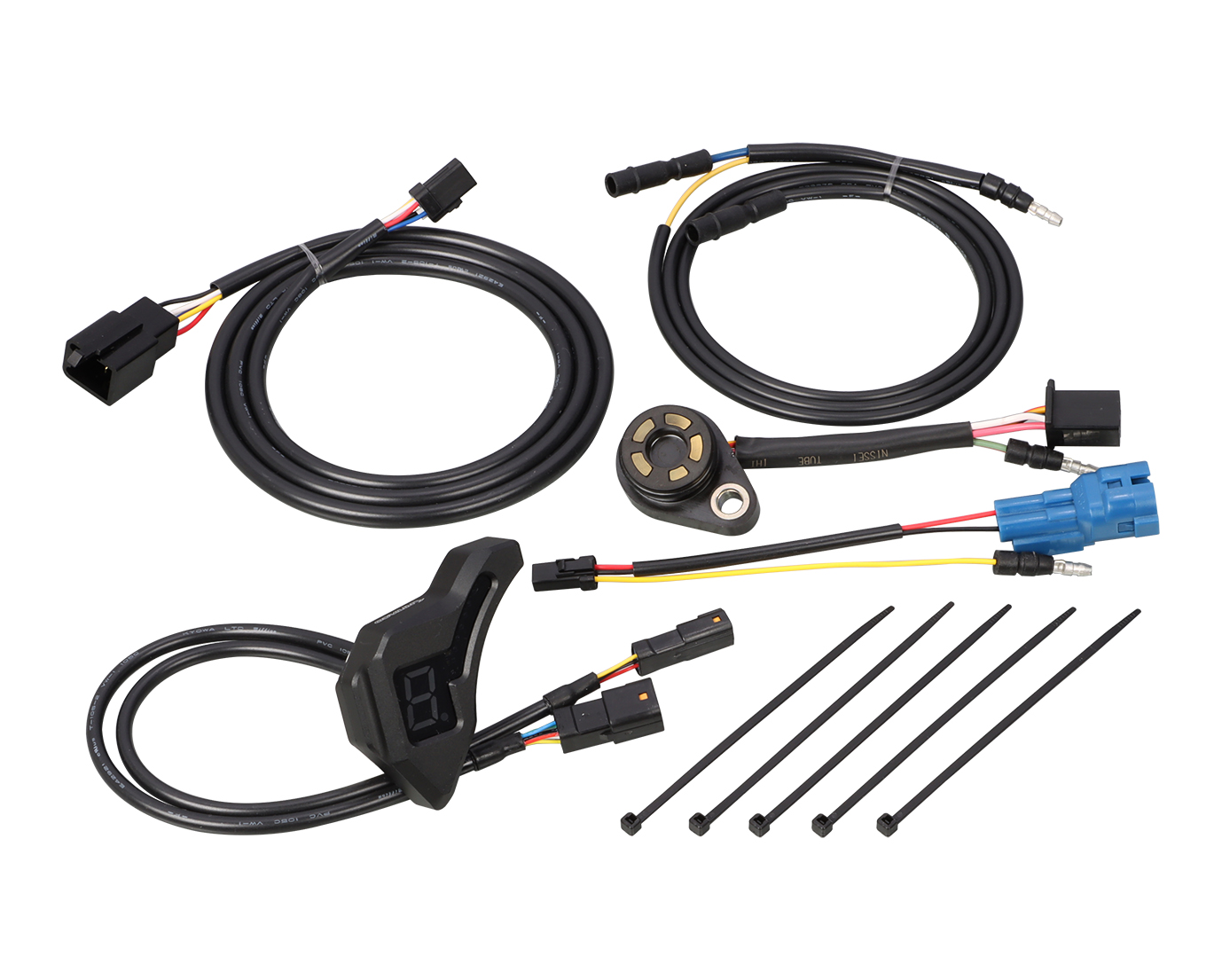

　○GEAR POSITION INDICATOR：CONTACT-TYPE GEAR POSITION SENSOR CAN DISPLAY 1st to 5th INSTANTLY SHOWING WHICH GEAR THE RIDER IS IN.
　○SHIFT UP INDICATOR：GEAR POSITION INDICATOR WILL FLASH TO PROMPT THE RIDER TO SHIFT GEARS.

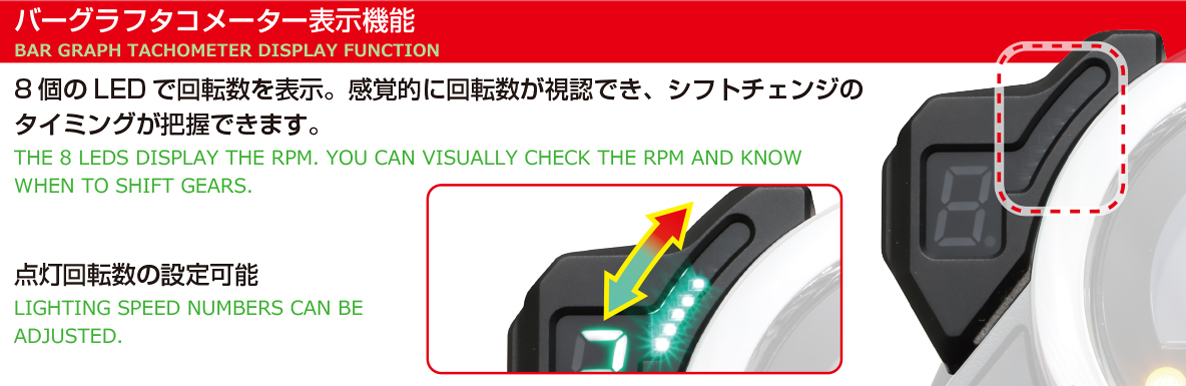

　○BAR GRAPH TACHOMETER：RPM IS DISPLAYED USING EIGHT LEDs, ALLOWING THE RIDER TO CHECK THE RPM.

●FUNCTION SETTING
　○LED BRIGHTNESS SETTING：LED BRIGHTNESS CAN BE ADJUSTED IN 5 STEPS (step 1 is the default setting).
　○PICK UP PULSE SETTING：RPM PULSE ACCORDING TO VEHCLES（9 OR 34 PULSE）ADJUSTABLE
　○BAR GRAPH TACHOMETER SETTING：BAR GRAPH TACHOMETER LIGHTING RPM INCREMENT ADJUSTABLE
　　1000rpm START・1000rpm INCR.（DEFAULT）
　　3000rpm START・1000rpm INCR.
　　2500rpm START・ 500rpm INCR.

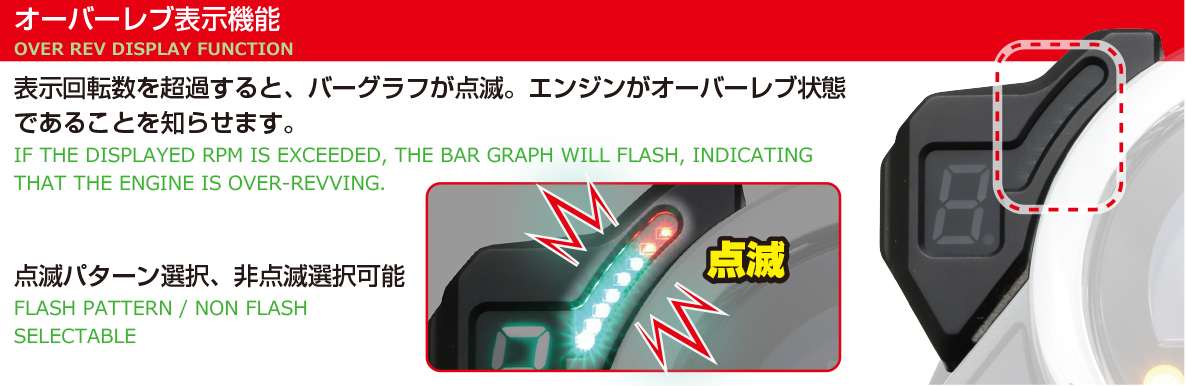

　○BAR GRAPH TACHOMETER OVER REV FLASHING SETTING ：IF THE DISPLAYED RPM IS EXCEEDED, THE BAR GRAPH WILL FLASH
　　NO FLASH
　　ONLY RED BAR GRAPH FLASH (DEFAULT)
　　ALL THE BAR GRAPH FLASH

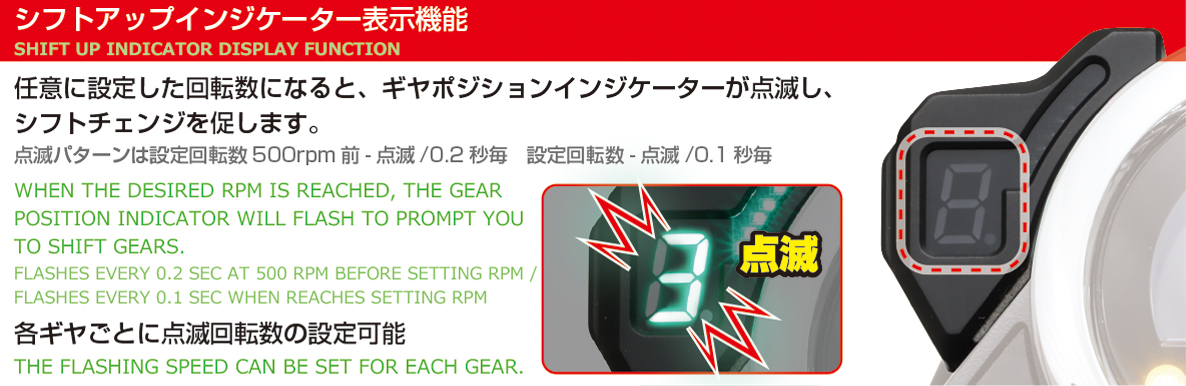

　○SHIFT UP INDICATOR FLASH SETTING：THE FLASHING SPEED OF THE GEAR POSITION INDICATOR ADJUSTABLE FOR EACH GEAR.
　　NO FLASH
　　FLASHING - COMMON RPM FOR ALL GEARS (DEFAULT)
　　FLASHING - THE RPM RANGE FOR EACH GEAR CAN BE ADJUSTABLE IN UNITS OF 10000, 1000, or 100 rpm.
　
●OTHER SETTING

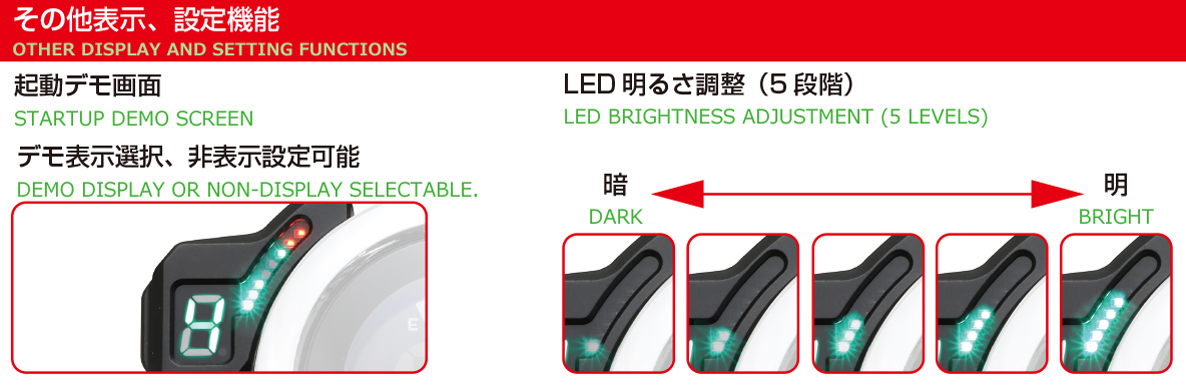

　○STARTUP DEMO SETTING：SELECTS DEMO DISPLAY OF STARTUP.
　　NO DEMO
　　DEMO #1 (DEFAULT)
　　DEMO #2
　○VOLTAGE DISPLAY WHEN STARTUP：DISPLAYS VEHICLE VOLTAGE WHEN STARTUP.
　　NO DISPLAY
　　DISPLAY (DEFAULT)

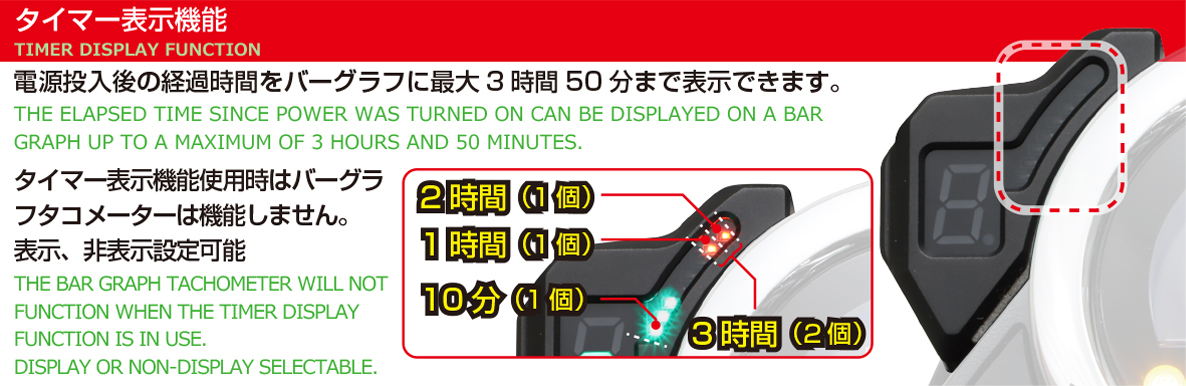

　○TIMER DISPLAY：ELAPSED TIME AFTER STARTUP CAN BE DISPLAYED ON THE BAR GRAPH FOR UP TO 3 HOURS AND 50 MINUTES.
　　LED1～5　GREEN（10 MIN PER 1 SEG.）
　　LED6　 RED LIGHT（1 HR.ELAPSED)
　　LED7　 RED LIGHT (2 HRS. ELAPSED)
　　LED7/8　 RED LIGHT (3 HRS. ELAPSED)
　　※BAR GRAPH TACHOMETER DOES NOT FUNCTION WHEN USING THE TIMER DISPLAY FUNCTION.

CT125 HUNTER CUB

JA55

*Japanese model only.

*Wiring diagram of service manual for compatibility confirmation is required for the vehicles sold in other countries.
