HOME > 03-DRIVELINE MANUAL > DRIVE SPROCKET (FRONT)

FOR ORIGINAL TUNING!

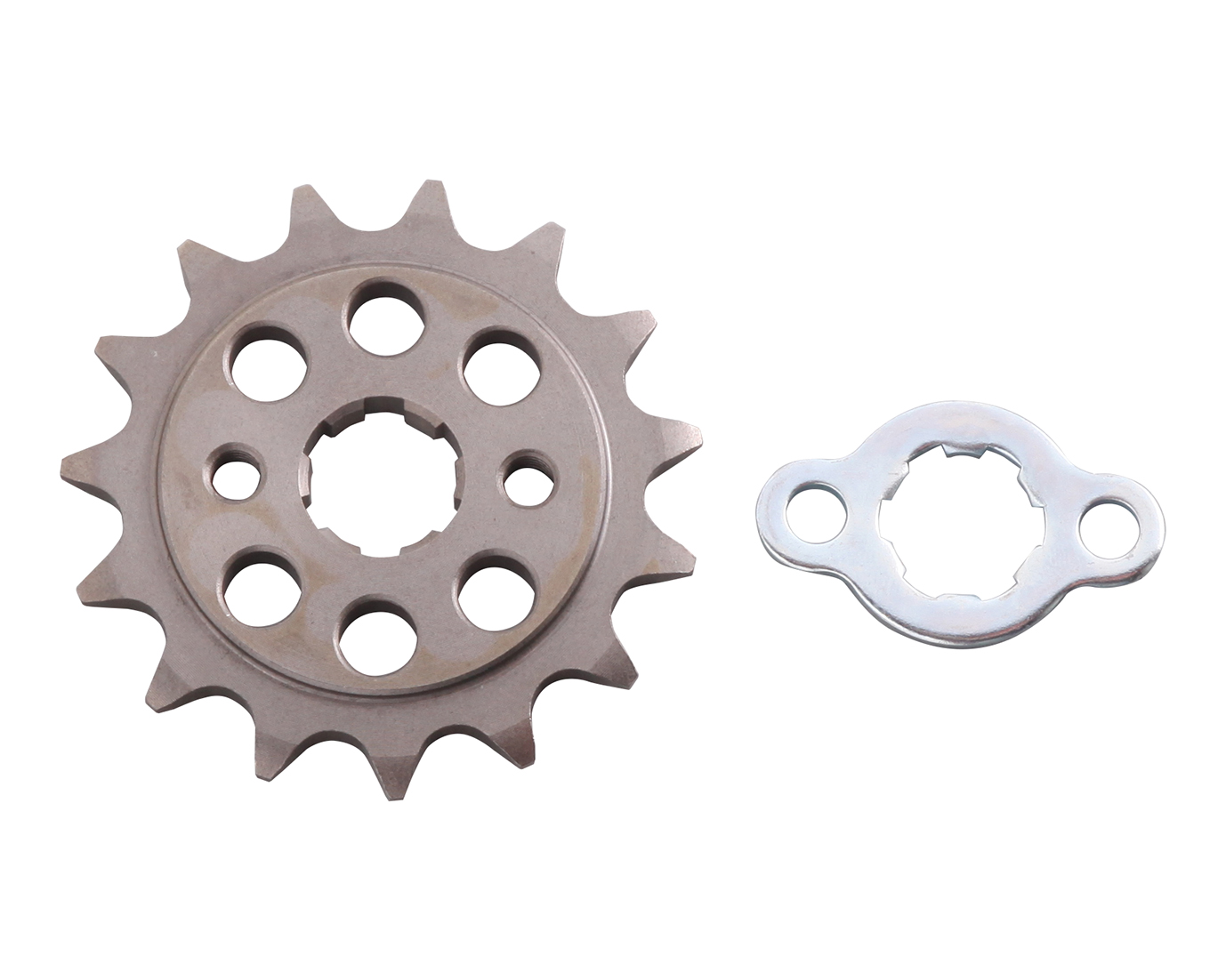

DRIVE SPROCKET (FRONT)

Main model

NSR50、MONKEY

Download the image

Download all images

RELATED ITEM

Type

Code NO

Tax in price

Price

JAN Code NO

15T (415)

530-1015015

¥1,980

¥1,800

4990852057276

16T (415)

530-1015016

¥1,980

¥1,800

4990852057283

17T (415)

530-1015017

¥2,090

¥1,900

4990852057290

12T (415) (DISCONTINUED)

530-1015012

¥1,980

¥1,800

Product description

FRONT SPROCKET WITH VARIETY OF TEETH LINE-UP AND REASONALBLE PROCE FOR BEST TUNING. LIGHTWEIGHT / HIGH DURABILITY S45C(HIGH CARBON STEEL) IS ADAPTED. LIGHTWEIGHT SPROCKET UNDER SPRING IS GOOD FOR FRICTION LOSS.
●INSPECT EVERY 1000 km AND EXCHANGE WHEN FOUND TAPERED. DAILY MAINTENANCE LIKE OIL LUBRICATING IS RECOMMENDED.

>>SPECIAL FEATURE

>>View more

Applicable model

●IT IS ATTACHMENT CONFIRMED TO THE FOLLOWING VEHICLES.

NSR50(AC10） / NSR80（HC08） / NS-1（AC12） / MONKEY/GORILLA（Z50J/AB27） / SUPER CUB50（C50-8000026～/AA01）/ LITTLE CUB（C50/AA01）/ SUPER CUB70（C70-8500001～）SUPER CUB90（HA02） / APE50/-TYPE D（AC16/AC18） / APE100/-TYPE D（HC07/HC13） / SUPER CUB50 SERIES（AA09/AA06/AA07） / SUPER CUB110（JA07） / SUPER CUB110（JA10） / GROM（JC61/JC75） / MONKEY125（JB02） / NSF100etc.

●A CONFORMITY TABLE IS REFERRED TO.

>>FITTING LIST

>>View more

Notes

○415
※415 SIZE DRIVE / DRIVEN SPROCKET / CHAIN REQUIRED FOR 415 SPROCKET
※17T INTERFERES WITH CRANKCASE FOR MONKEY / CUB（50cc～90cc）ENGINE
※MAKE SURE OF THE CLEARANCE BETWEEN CHAIN AND CRANKCASE.
※WIDE CHAIN GUIDE PLATE IS REQUIRED WHNE INSTALLING 16T OR MORE ON GROM / MSX125. SPEEDOMETER DISPLAY ERRORS HAPPEN WHEN EXHANGING DIFFERENT TEETH.
※USING CHAIN GUIDE PLATE & 16T OR MORE IS NOT POSSIBLE FOR SUPER CUB50(AA04)
※M6X10 CAP BOLT IS REQUIRED WHEN INSTALLING 12/13T WHICH INTERFERESWITH CHAIN (SOLD SEPARATELY)

>>View more

Comment

2023/04/21 12T(530-1015012) DISCONTINUED
2021/02/10 18T(530-1015018) DISCONTINUED

>>View more
