GEAR POSITION INDICATOR

IN ADDITION TO THE GEAR POSITION INDICATOR, THIS MULTI-FUNCTION INDICATOR COMBINES AN LED BAR GRAPH TACHOMETER USING 8 LEDS AND A SHIFT-UP INDICATOR, AND CAN BE ATTACHED SEAMLESSLY TO THE STOCK SPEEDOMETER.
IMPROVES DRIVING PRECISION AND SAFETY BY PROVIDING THE RIDER WITH A VISUAL INDICATION OF CURRENT GEAR POSITION AND ENGINE RPM.

UNIT DESIGN THAT FEELS NATURAL AFTER INSTALLATION

A NATURAL DESIGN THAT MATCHES THE SHAPE OF THE STOCK METER AND DOES NOT LOOK LIKE AN ADDED AFTERWARDS.

GEAR POSITION INDICATOR DISPLAY FUNCTION

GEAR SHIFT POSITION DISPLAY FUNCTION THAT CAN DISPLAY 1ST TO 5TH GEAR (4TH GEAR DEPENDING ON THE MODEL). INSTANTLY DISPLAYS THE CURRENT GEAR POSITION.

BAR GRAPH TACHOMETER DISPLAY FUNCTION

THE 8 LEDS DISPLAY THE RPM. YOU CAN VISUALLY CHECK THE RPM AND KNOW WHEN TO SHIFT GEARS.

• LIGHTING SPEED NUMBERS CAN BE ADJUSTED.

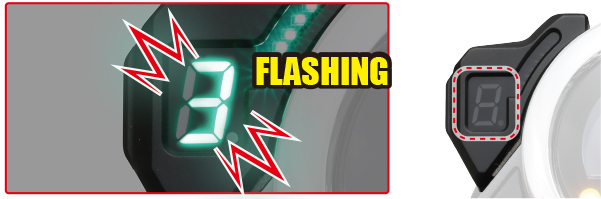

SHIFT UP INDICATOR DISPLAY FUNCTION

WHEN THE DESIRED RPM IS REACHED, THE GEAR POSITION INDICATOR WILL FLASH TO PROMPT YOU TO SHIFT GEARS.

• THE FLASHING SPEED CAN BE SET FOR EACH GEAR.

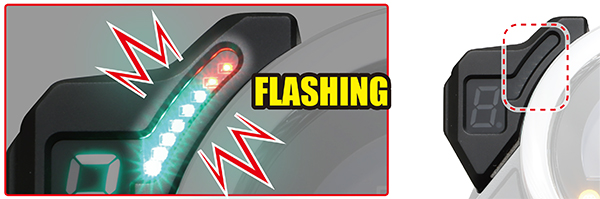

OVER REV DISPLAY FUNCTION

IF THE DISPLAYED RPM IS EXCEEDED, THE BAR GRAPH WILL FLASH, INDICATING THAT THE ENGINE IS OVER-REVVING.

• FLASH PATTERN / NON FLASH SELECTABLE

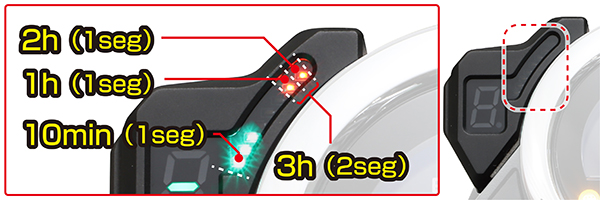

TIMER DISPLAY FUNCTION

THE ELAPSED TIME SINCE POWER WAS TURNED ON CAN BE DISPLAYED ON A BAR GRAPH UP TO A MAXIMUM OF 3 HOURS AND 50 MINUTES.

• THE BAR GRAPH TACHOMETER WILL NOT FUNCTION WHEN THE TIMER DISPLAY FUNCTION IS IN USE. DISPLAY OR NON-DISPLAY SELECTABLE.

TIMER DISPLAY FUNCTION

VOLTAGE DISPLAY FUNCTION AT STARTUP

• DISPLAY OR NON-DISPLAY SELECTABLE.

STARTUP DEMO SCREEN

WHEN TURNING ON THE POWER, THE OPENING DEMO SCREEN WILL BE DISPLAYED.

• DEMO DISPLAY OR NON-DISPLAY SELECTABLE.

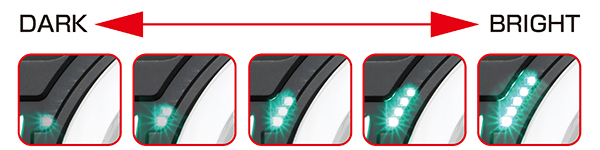

LED BRIGHTNESS ADJUSTMENT (5 LEVELS)

THE LED BRIGHTNESS (LUMINANCE) CAN BE ADJUSTED IN FIVE LEVELS.

SETTINGS CAN BE MADE USING THE SETTING BUTTON

PRESS AND HOLD THE SETTING BUTTON ON THE BACK OF THE UNIT FOR 2 SECONDS TO ACCESS THE SETTING SCREEN.
