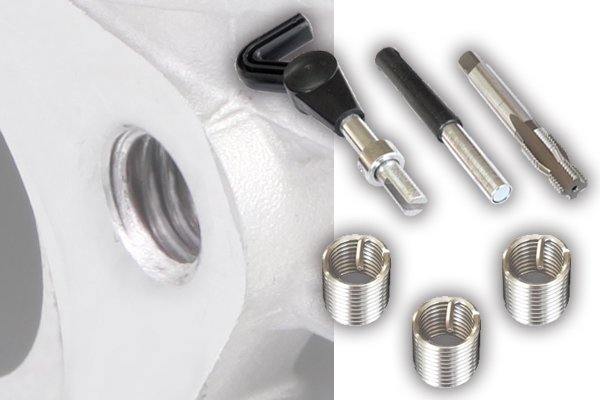

めねじのネジ山が破損した時にネジ山を復活させるKITです。ネジ山の損傷とめねじの強度不足を解消するのに最適。めねじを同じサイズ/ピッチで再生し、強度もアップします。 THE KIT TO REBUILD FEMAIL SCREW. SAME SAZE / PITCH CAN BE REBUILT WITH REINFORCED.

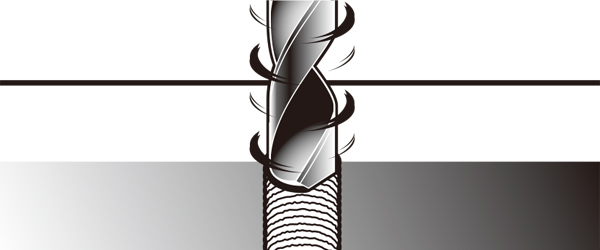

使用手順1.下穴加工 INSTRUCTIONS 1. PILOT HOLE DRILLING
![](recoil_kit_procces1.jpg)
ドリルで損傷ネジ部を取り除いて下さい。ドリルはKITに表示されたサイズのものを使用して下さい。 Remove the damaged screw with a drill.Use the drill of the size indicated on the KIT.

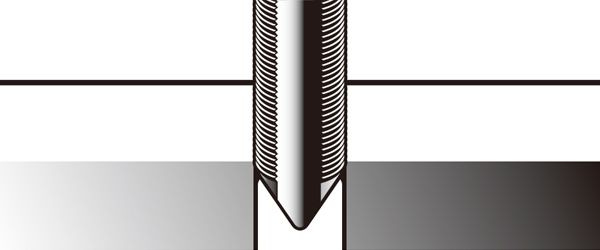

使用手順2.タップ立て INSTRUCTIONS 2. TAPPING PROCESS
![](recoil_kit_procces2.jpg)
タップを立てた後は切り屑、ゴミ等をエアーで完全に取り除いて下さい。 After raising the tap, remove chips, dust, etc. with air completely.

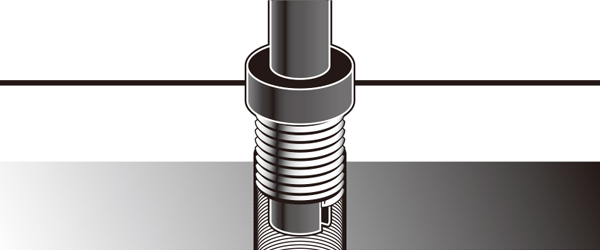

使用手順3.リコイルの挿入 INSTRUCTIONS 3. INSERT RECOIL
![](recoil_kit_procces3.jpg)
タングを下に向けて挿入工具でねじ込みます。リコイルのねじ込み深さはねじ込み開始部分からネジ山が1/2~3/4ピッチ沈む程度が適当です。 Screw the tongue down with the insertion tool.The appropriate screwing depth for the recoil is such that the screw thread sinks 1/2 to 3/4 pitch from the screwing start part.

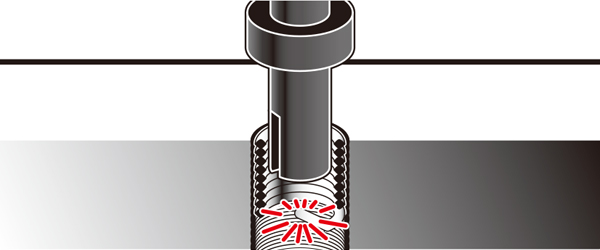

使用手順4.タングの折り取り INSTRUCTIONS 4. FOLD AND REMOVE TONGUE
![](recoil_kit_procces4.jpg)
挿入工具をタングから抜いて90°回転させ、上から叩いてタングを折ります。M8以下のKITにはタング折り取り専用工具が付属されていますので、そちらをご使用下さい。 Remove the insertion tool from the tongue, rotate it 90 °, and tap it from above to fold the tongue.Recoil kits of M8 or less come with a special tool for tongue folding.
- パイロットタップ付きは1.下穴加工と2.タップ立ての行程が同時にできます。
- Kits with a pilot tap, 1. pilot hole drilling and 2. tapping process can be done at the same time.
